Phosphate adsorber
PCTOP-DA315
PCTOP-DA315

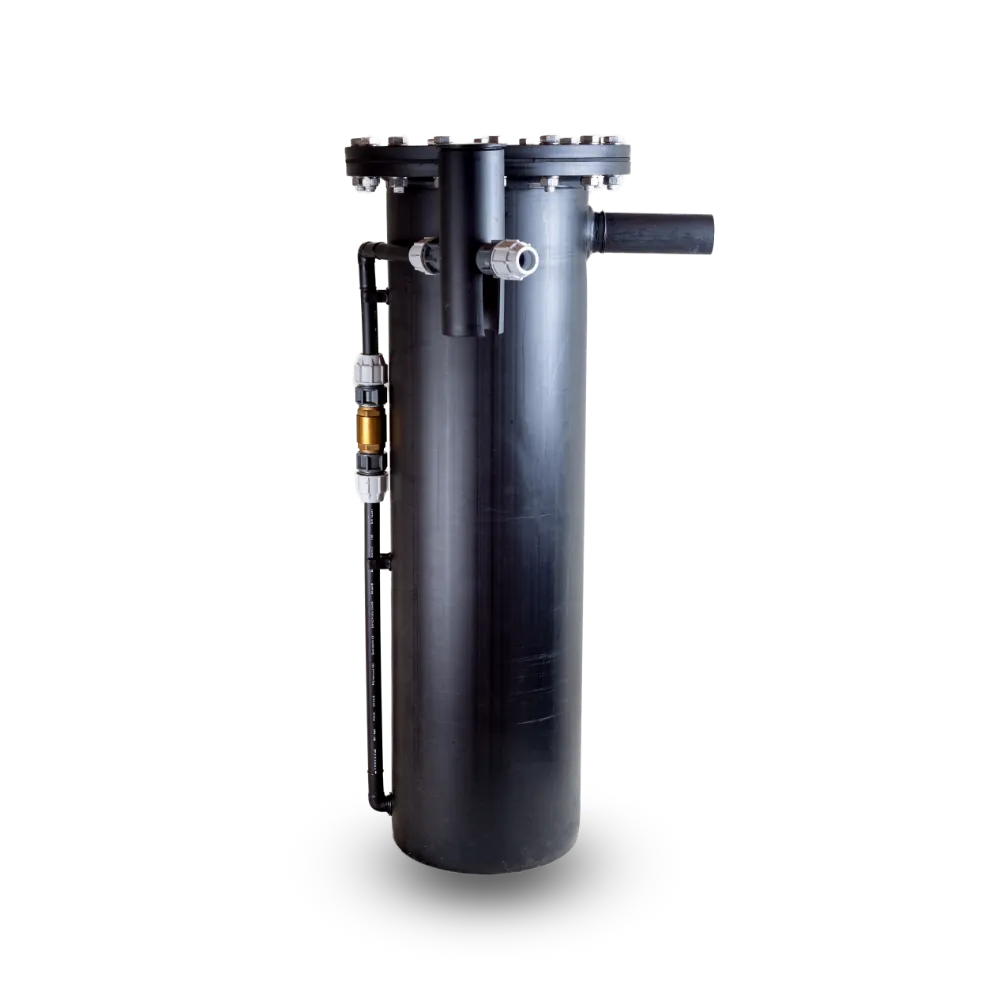

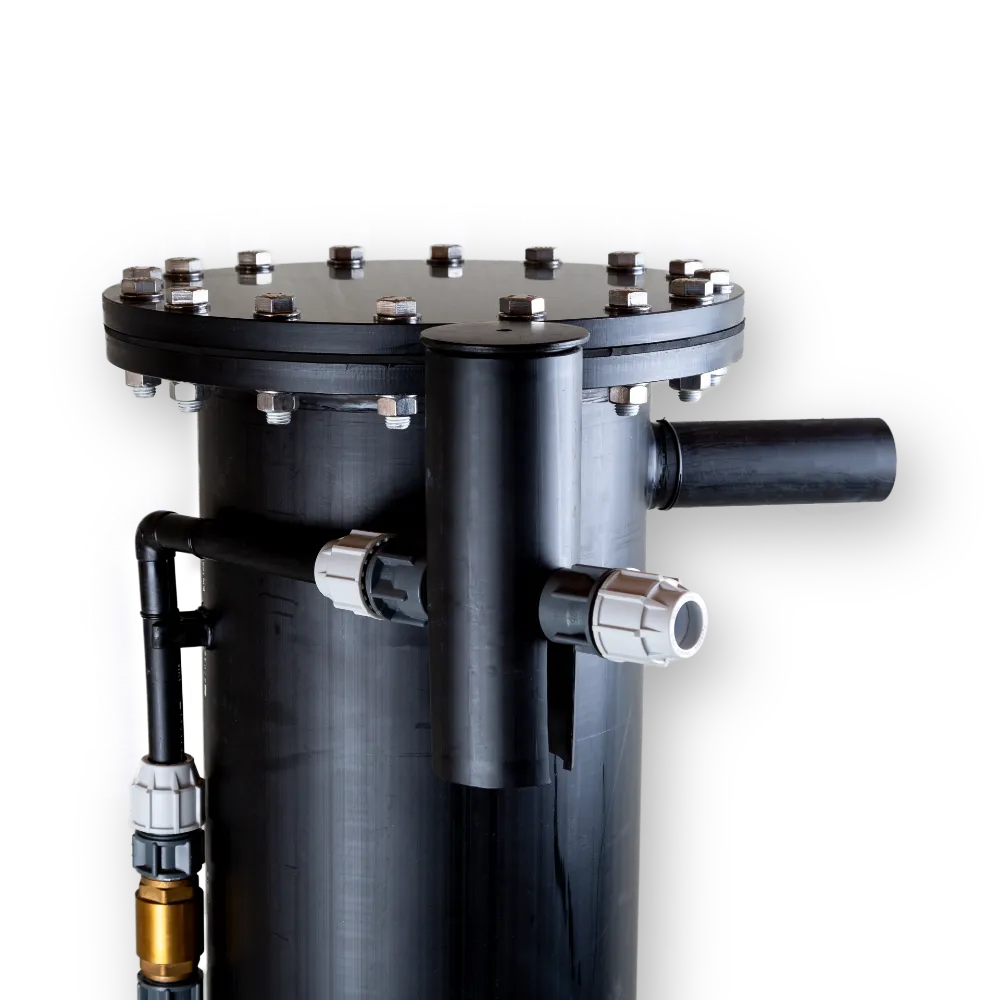

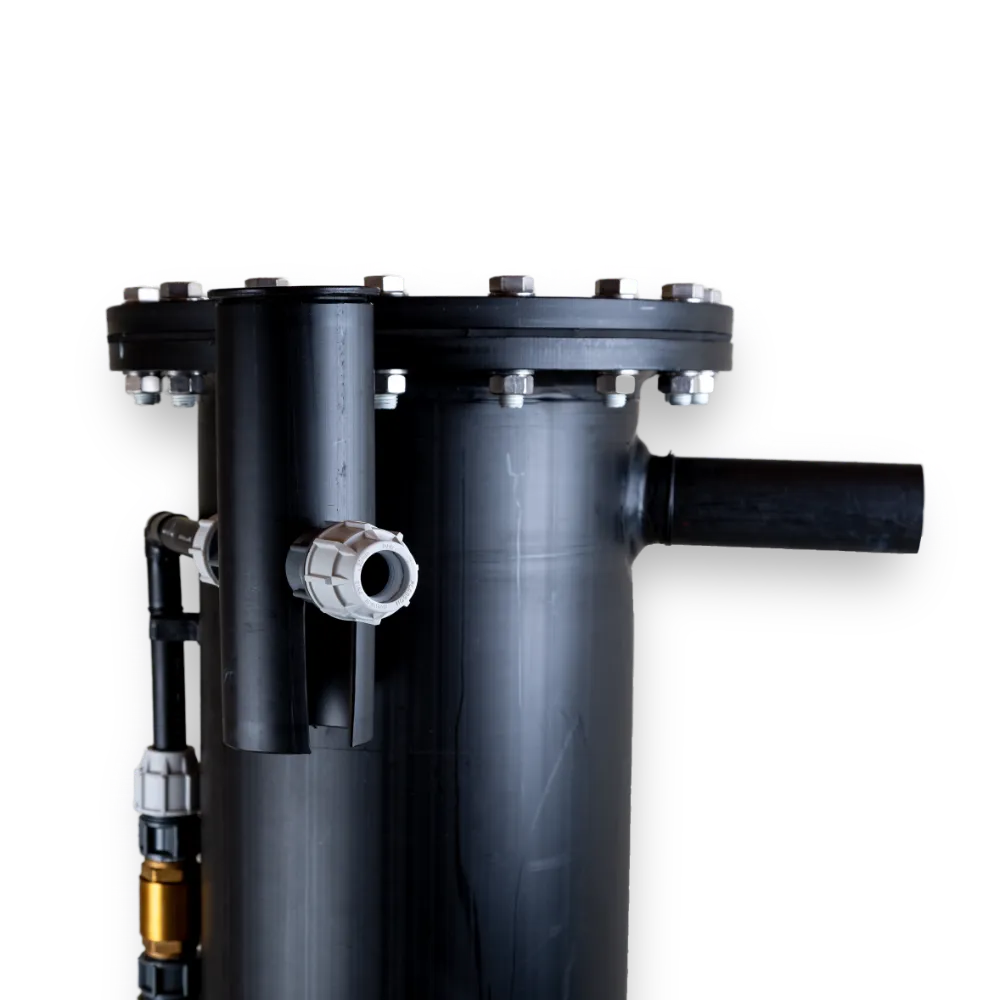

Our PO4 adsorbers PCTOP - DA315 are used to treat drinking water for filling water refills or can be used internally in the pure water circuit. Depending on the intended use, we offer two variants: one variant is intended for permanent installation and can be buried in the garden or installed in the technical room - the other variant was developed for mobile use; it has wheels and can be used flexibly wherever it is needed most. Both adsorbers are fed from bottom to top and have a pressure-tight body made of PE (cover made of PVC).
Dimensions:
Adsorber material filling height: 80 cm - equivalent to 60 kg
Total diameter: 31.5 cm
Connection: Gardena hose connection or DA25 compression fitting

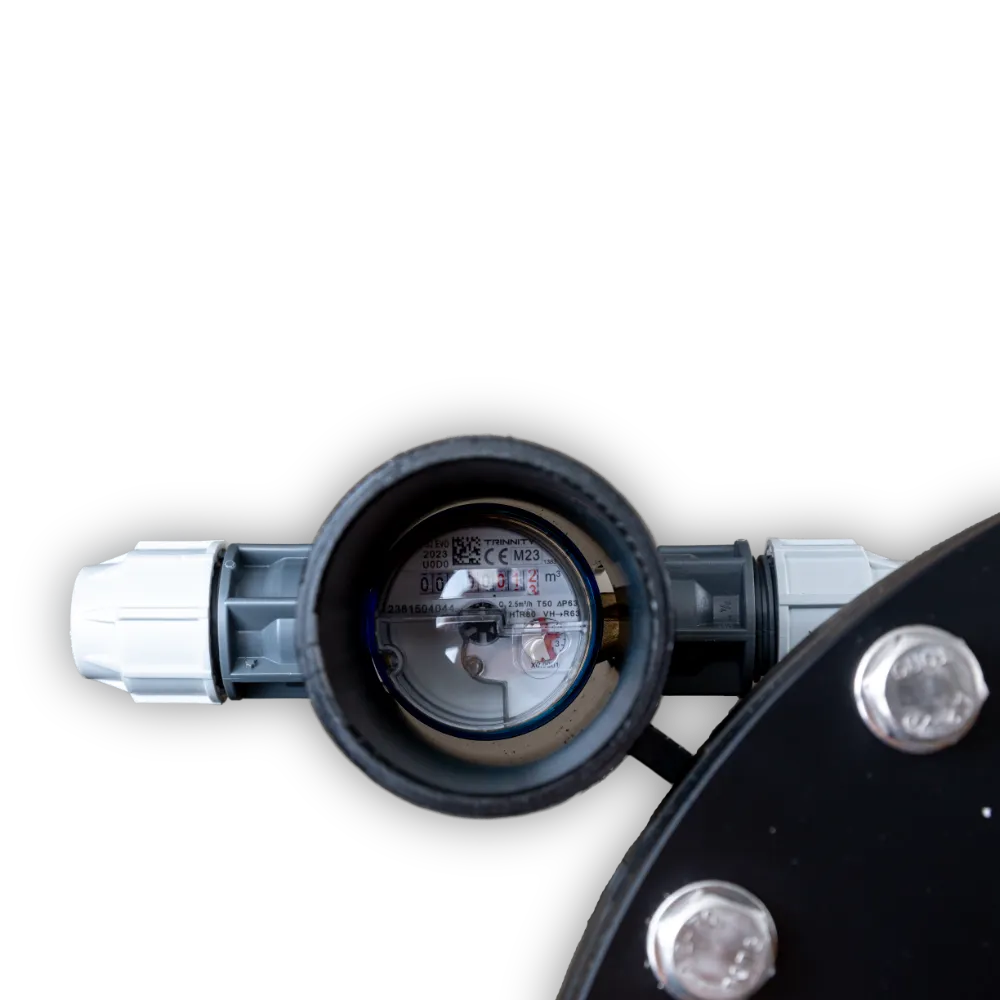

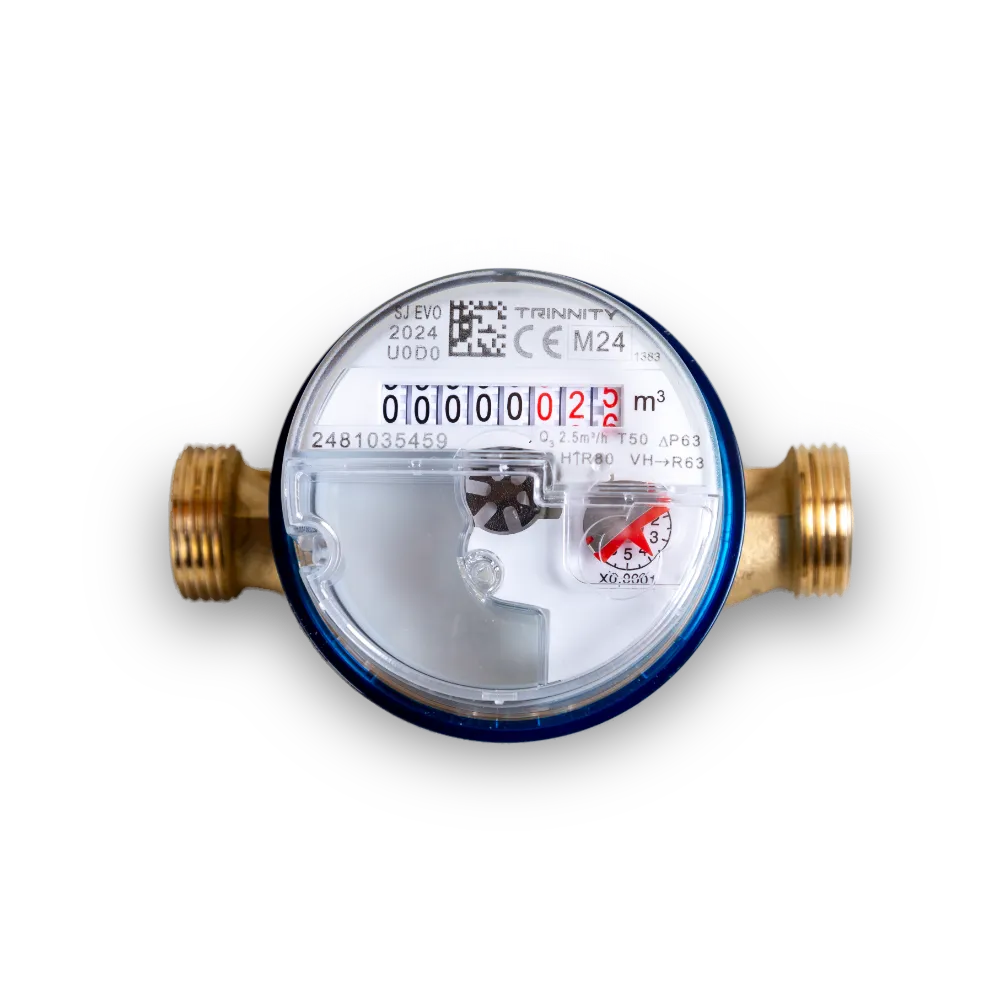

Inlet: 2.5 cm (PE-HD DA25) with water meter and manual control valve up to 3.0 bar
Drain: 6.3 cm (PE-HD DA63)

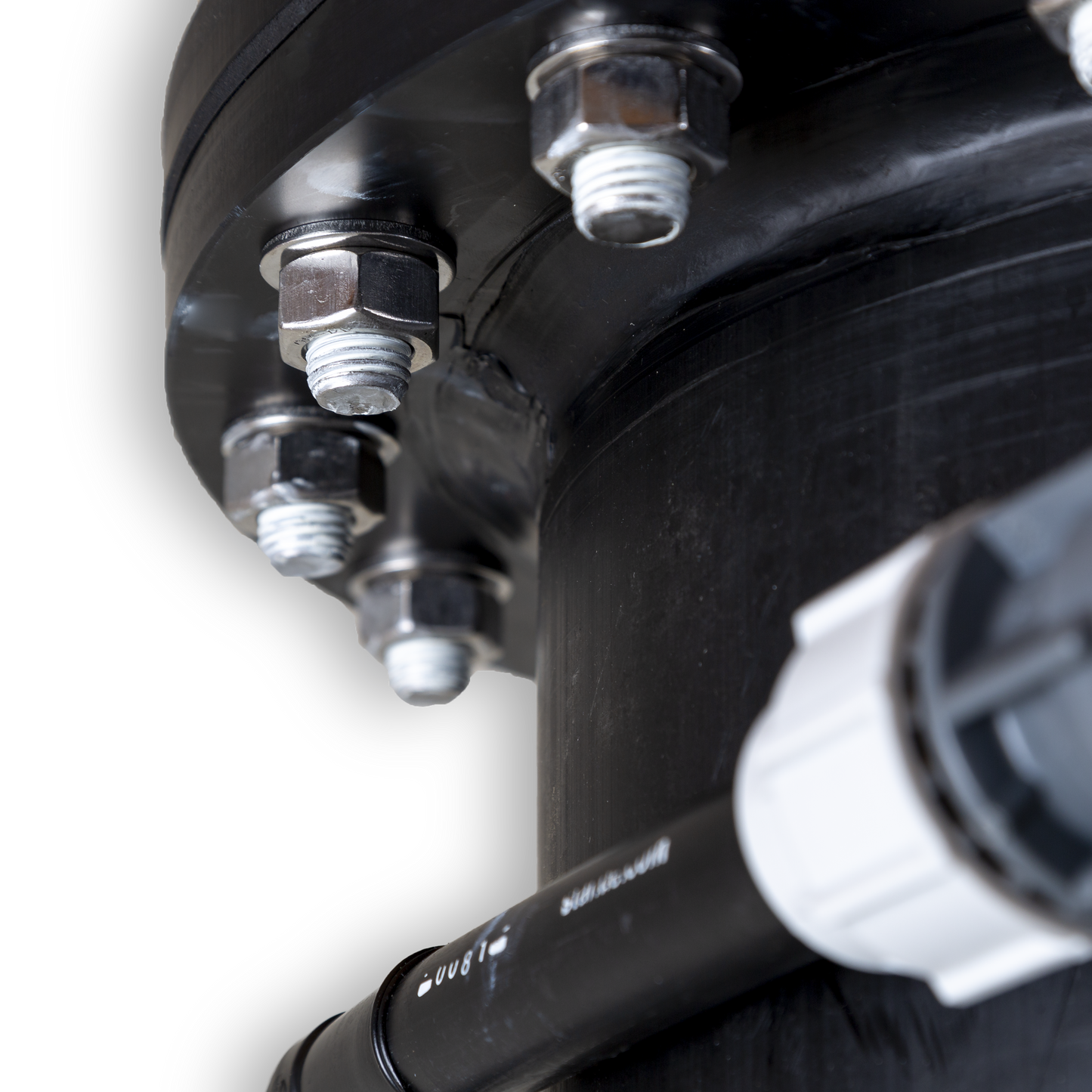

Cover: flange 20mm (PVC) 16x M16x70 bolts made of V2A stainless steel
Feed rate: max. 341.7 l/h - max. 5.7 l/min
Of course, we also offer adsorption material for refilling.

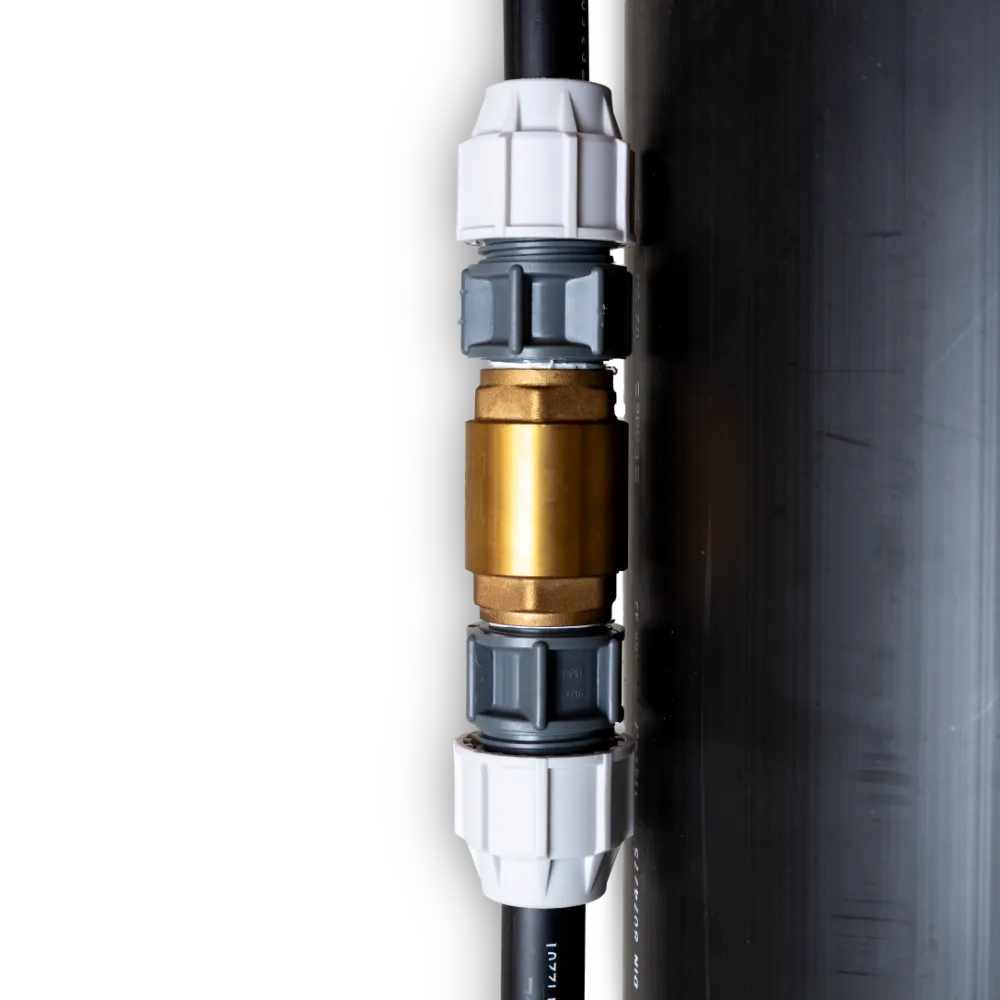

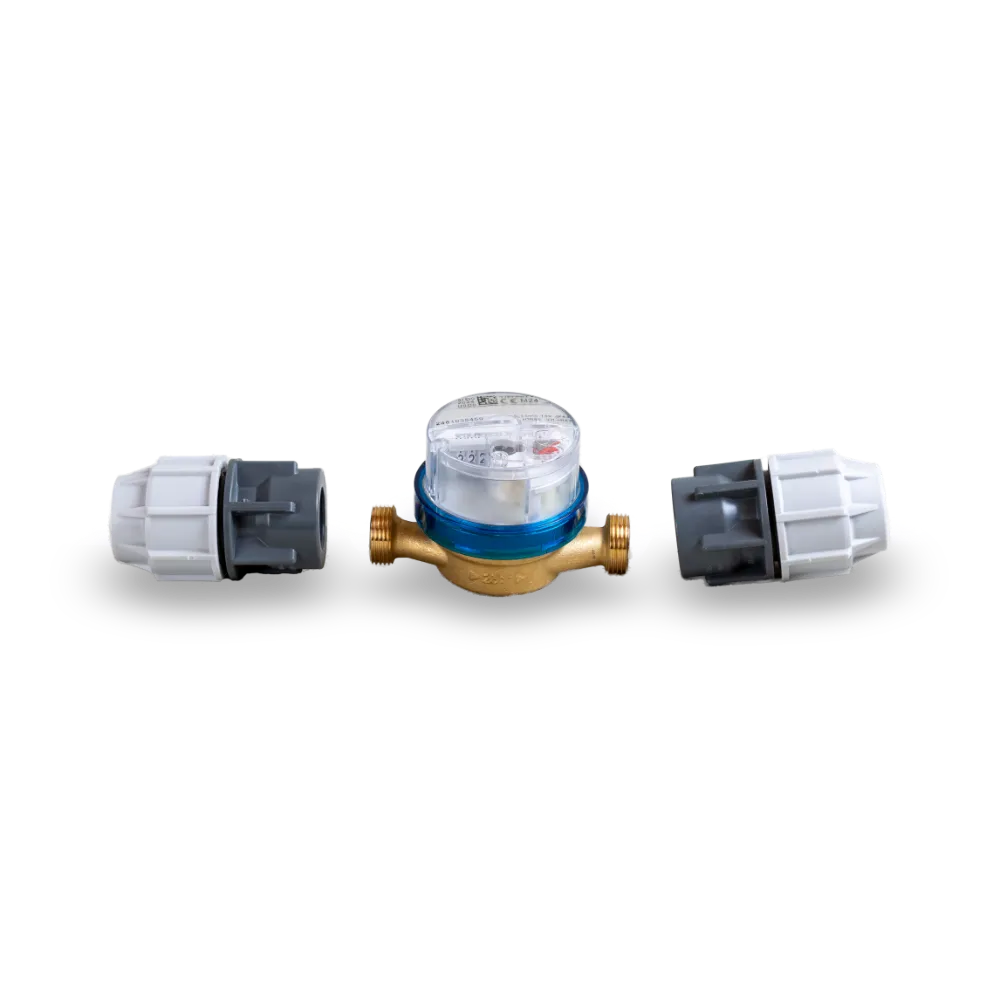

Scope of delivery: Phosphate adsorber PCTOP - DA315, water meter, control valve for adjusting the volume flow, check valve and 80kg adsorption material Granulated Iron Hydroxide (GEH), on pallet
